Bridles & Lines
PYRO’s bridle system is built around one goal: maximum control with minimum clutter.
- Short center bridles (approx. 1.3–1.5 m)
Tuned per size for fast kill, clean recovery and reduced tangling. Shorter overall system = easier stash and easier relaunch. - Clean A/B/C/D layout with brake (Br) risers
Five rib attachment positions distribute load smoothly across the canopy without over-complicating the line map. - Separated center A’s and outer A’s
Center A risers are grouped for efficient “kill” and pull-in, while outer A’s sit separately so tip sections can flag and de-load, making it easier to pull the wing to you under tension. - Smooth, color-coded lines
DSL70 and PPSLS lines with clear color coding make sorting and orientation intuitive when unpacking or stowing. - Straight, snag-free runs
From the center A riser to the canopy, lines are kept as straight and clean as possible to reduce friction points when you slide your hand up to the wing.
The result is a bridle that feels simple in the hands but is tuned for real-world use: less thinking, fewer tangles, more riding.

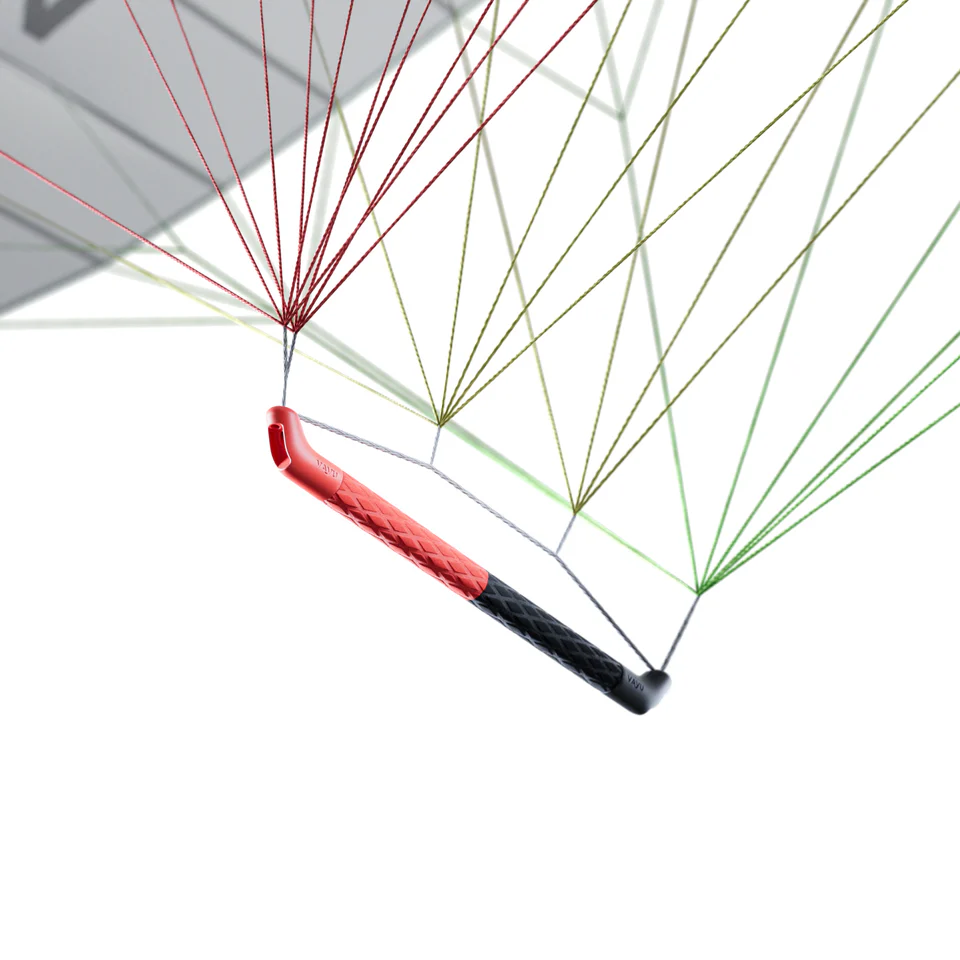

Bridge Bar & Control System
The PYRO Bridge Bar is your connection to the canopy, designed to be direct, clean, stash-friendly, and very easy to maintain.
- Bridge line architecture
Each rib group has its own leader on the bridge, so line tension increases smoothly and sequentially as you sheet in. No pulleys, sliders or uneven loads. - Full-length usable grip
With the center hardware removed from the hand area, you can slide and reposition your hands anywhere along the bar without hitting a stopper. - Curved molded bar ends
Reduce line wrapping and give your fingers a comfortable, secure reference point, especially when riding one-handed or flagged. - Short, size-tuned bar lengths
Bar length is scaled to canopy size and kept compact to make on-foil stash and pack-down easier, even on bigger sizes.
Bar Legths: 2.5 = 275mm, 3.2 = 315mm, 4.0 = 350mm, 5.0 = 390mm - Smooth angle-of-attack range
The bridge configuration gives you a long, usable sheeting range: you can pull on power or dump it without instantly stalling the canopy. - Easy maintenance
Easy maintenance thanks to a fully modular, easy-to-replace bar and bridle system.
